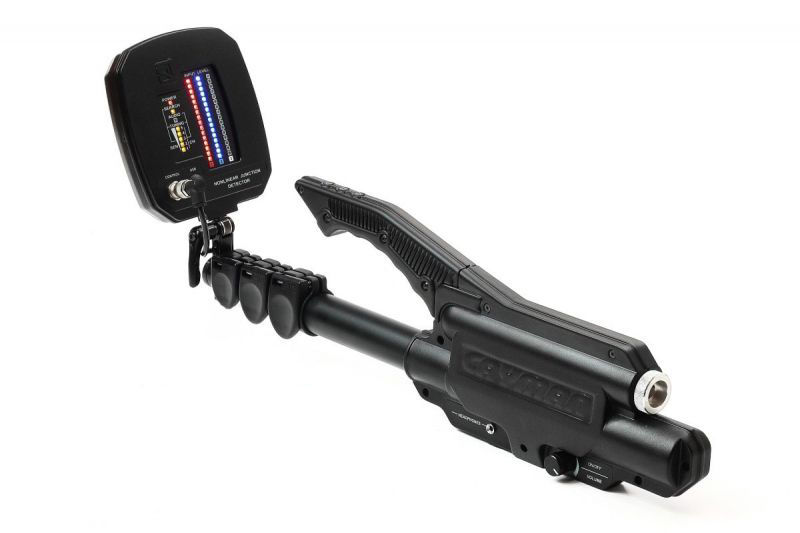

Cayman ST-402 Non Linear Junction Detector

Device is used for search and detection electronic devices containing semiconductor components. Cayman 400 allows detecting and precise localizing both working devices and even turned off ones. Using this non-linear junction detector operator is able to distinguish natural semiconductor from the artificial one (metal, corrosion, metal-oxide-metal structure)

Zoom the image with the mouse

(1 review) Write a Review

SKU: SEL-ST-402

$13,975.00

Availability:: 2 Weeks

Select Available Options:

Cayman ST-402 Non Linear Junction Detector

$13,975.00

Features ergonomic design, large telescopic bar and retractable armrest.

Non-linear junction detectors Cayman are used for search operations. ST-402 CAYMAN is designed for search and detection of hidden data capturing devices, mobile phones, SIM-cards and other electronic devices containing semiconductor components. Cayman 400 (402) allows detecting and precise localizing both working devices and even turned off ones. Using this non-linear junction detector operator is able to distinguish natural semiconductor from the artificial one (metal, corrosion, metal-oxide-metal structure).

Competitive advantages:

Main distinctive feature of non-linear junction detectors CAYMAN is multifrequency irradiation mode, which provides wide range of advantages in front of detectors designed by the classic scheme:\

Increased selectivity (ability to distinguish electronic components with background of metal-oxide-metal structure);
increased probability of detection electronic devices behind partially shielded surfaces (such as the grid "netting");
optimal ratio of radiation power and detection range;
ability to identify detected objects in Audio mode;
high detection sensitivity at a low output power;
ability for effective operation in complicated interference environment (reinforced structures, corrosion, etc.).

Updated model has beneficial differences from the last modification:

modernized antenna, which increase detector selectivity;
reduced weight and overall dimensions of the device;
simplified system of control and indication;
use of common power supply batteries;
more ergonomic design: large telescopic bar and retractable armrest provide maximum comfort for the user.

Additional features:

original signal processing algorithm enables to reduce false responses and increase the selectivity as well as reaction speed;
software upgrade via USB;
detector is supplied in shockproof package.

Height	250 mm
Width	1500 mm (telescopic arm and elbow rest pulled out completely)
Thickness	130 mm
Weight	1.75 kg (with battery)
Case	Plastic
Power supply	12
Frequency band	2-3 GHz
Battery life	3-4 hours
Battery charging time	up to 3 hours

Cayman 400 Technical Characteristics:

Frequency range	2-3 GHz
The maximum radiated peak power	Less than 2W
Antenna	circularly polarized
Operating modes	“search”, “audio”, “adaptation”
The range of sensitivity adjustment in manual mode	40 dB (5 steps of 8 dB each)
Indication:
- visual	three 16 LEDs bars
- audible	built-in speaker, headphones
Power supply	2 Li-ion rechargeable batteries 3,7V (18650 type)
Run time of a fully charged battery	3-4 hours (depending on the operating mode)
Charge time	not more than 3 hours
Operating conditions
- temperature	+5 ... +40 C
- humidity	not more than 85%
weight with battery	1.75 kg
Dimensions when folded (length, width, height)	510x130x145 mm
Dimensions with a fully extended telescopic handle and armrest	1500x130x250 mm
Weight of the full set	5.8 kg

Delivery set:

Item	Quantity	No. in Figure
ST 402 CAYMAN non-linear junction detector	1	2
Rechargeable battery of type 18650	4	3
Power supply charger	1	4
Charging unit*	1	5
Headphones*	1	6
Semiconductor simulator (red marking)	1	1
Metal-oxide-metal structure simulator (blue marking)	1	1
Operation manual	1
Transportation shockproof package	1

*charger and headphones are located at the bottom of the stacking (under nonlinear locator)
