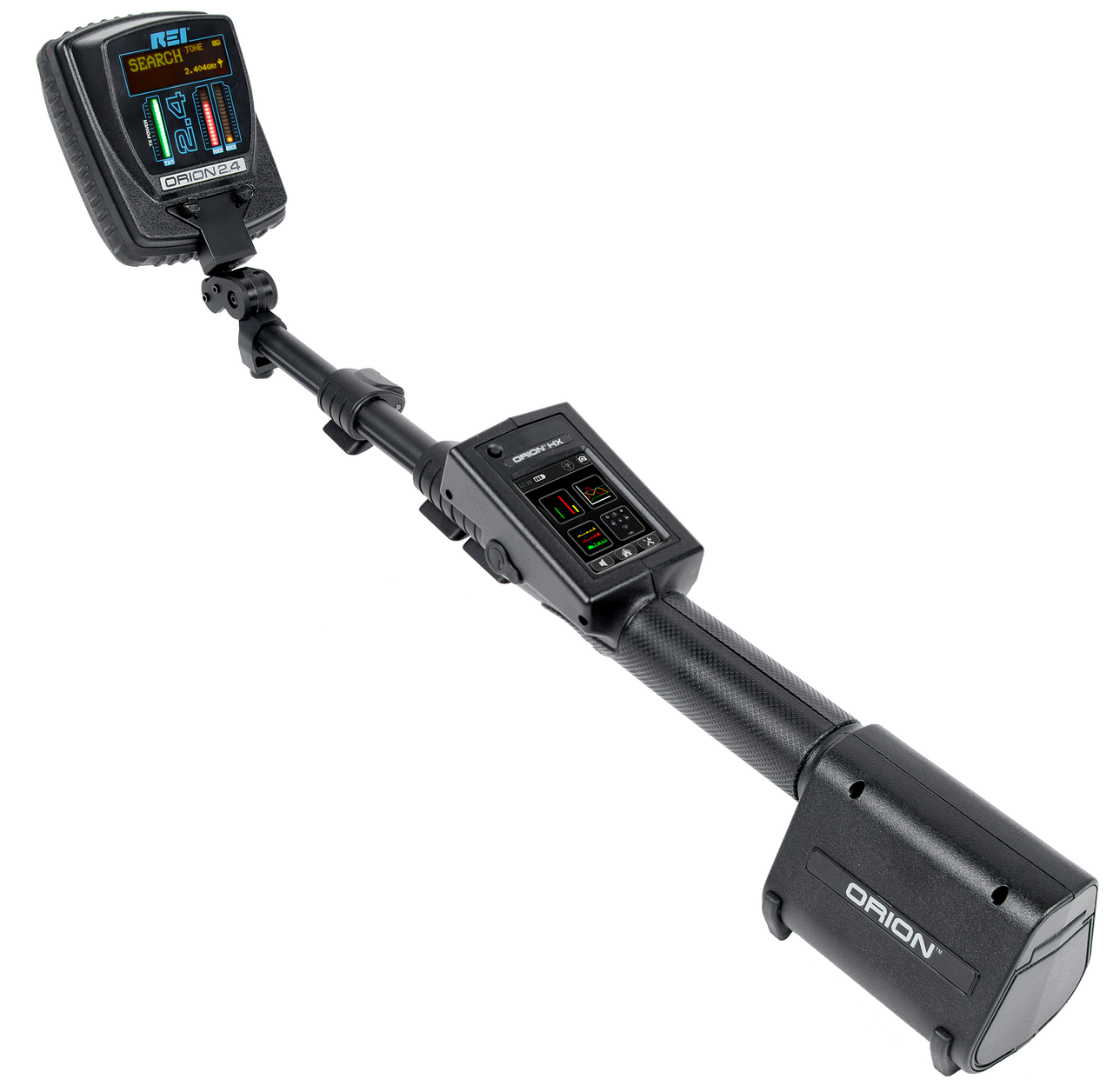

ORION™ 2.4 HX Non-Linear Junction Detector

Zoom the image with the mouse

(1 review) Write a Review

SKU: KJB-OrionHX2.4

$18,650.00

In Stock

Free Shipping

Select Available Options:

ORION™ 2.4 HX Non-Linear Junction Detector

$18,650.00

Locate Eavesdropping Devices

The ORION 2.4 HX Non-Linear Junction Detector (NLJD) detects electronic semi-conductor components in walls, floors, ceilings, fixtures, furniture, containers, or other surfaces. The ORION 2.4 HX NLJD is made to detect and locate hidden cameras, microphones, and other electronic devices regardless of whether the surveillance device is radiating, hard wired, or turned off.

Efficiency: shorter wavelength of the 2.4 GHz model does better at detectingmodern, surface-mounted circuitry in normal office environments

Usability: multiple alert methods are available with a line-of-sight antenna mounted display to allow users to visualize target and display simultaneously

Portability: lightweight design is under three pounds and no assembly is required with an integrated telescoping pole

The ORION™ Non-Linear Junction Detector (NLJD) detects the presence of electronics, regardless of whether they are radiating, hard wired, or even turned off. Electronics containing semi-conductor properties return a harmonic signature the ORION NLJD can detect when radiated with RF energy. An NLJD detects physical properties, and not energy emissions. Therefore, devices that contain circuit boards and their components, like cell phones, video cameras, and microphones can be detected by the ORION NLJD.

How does a non-linear junction detector work?

The NLJD antenna head is a transceiver (transmitter and receiver) that radiates a digital spread spectrum signal to determine the presence of electronic components. When the energy encounters semi-conductor junctions (diodes, transistors, circuit board connections, etc.), a harmonic signal returns to the receiver. The receiver measures the strength of the harmonic signal and distinguishes between 2nd or 3rd harmonics. When a stronger 2nd harmonic is represented on the display in red, it indicates an electronic junction has been detected. In this way, a hand-held ORION is used to sweep walls, objects, containers, furniture, and most types of surfaces to look for hidden electronics, regardless of whether the electronic device is turned on.

Features

Digitally modulated transmit signal, correlated 2nd & 3rd harmonic response, and adjustable DSP gain provide improved detection & minimize interference (patent pending)
Histogram graph displays continuous history of harmonic response and power adjustment (patent pending)
Touch screen displays the full RF spectrum for transmit, 2nd, or 3rd frequency ranges
1.25 MHz-wide bandwidth transmit signal increases detection sensitivity
Alert tones and haptic (vibration) alert can be selected to alert when signal levels surpass the trip levels
Line-of-sight antenna mounted display and LED head lamp allows user to focus eyes on sweeping target and display at same time, even in dark areas
Small, lightweight design weighs only 2.8 lbs/1.3 kg
No pole or cable assembly required with integrated telescoping pole
A synthesized transceiver with frequency stability and agility to automatically search for clean operating frequencies (2.404 GHz - 2.472 GHz)
Circularly polarized transmit and receive antenna removes the risk of missing a threat due to incorrect antenna polarization

Applications

Technical Surveillance Countermeasures (TSCM)
Counter Surveillance
Non-Linear Junction Detection
Locating Hidden Electronics
Locating Electronic Contraband
Intelligence Protection
Executive Protection
Eavesdropping Detection
Surveillance Equipment Detection
Electronic Surveillance Detection

Specifications

TRANSMITTER

Transmit power*: 3.3 W EIRP; G model: 6.6 W EIRP
Power control: Manual or auto control
Frequency band: 2.404 GHz - 2.472 GHz
Transmit channels: Manual or auto selection
Transmit modulation: Digital 1.25 MHz bandwidth
*G model available to entities, agencies, and persons not restricted by FCC/IC. Both power levels are CE marked for public safety and security.

RECEIVER

Simultaneous 2nd & 3rd harmonic receive
Digitally correlated
Frequency bands:

Second harmonic (4.808 GHz - 4.944 GHz)
Third harmonic (7.212 GHz - 7.416 GHz)

Sensitivity: -140 dBm for both harmonics

DISPLAY

Handle-mounted 2.7 inch touch screen controller display**
Antenna-mounted display
Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)
**Keypad model also available

MECHANICAL

Extension lengths: 16-51 in (40.6-129.5 cm)
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm)
ORION 2.4 HX dimensions: 22.4 in x 3.75 in x 3 in (57 cm x 9cm x 7.5 cm)
Overall extended length: 58 in (147 cm)
ORION 2.4 HX weight with battery: 3 lbs (1.4 kg)
Case weight including ORION and accessories: 12 lbs (5.4 kg)

BATTERY

Input AC: 100-240 V, 50-60 Hz
Run time: >4 hours per battery (typical)
Charge time: 2.5 hours per battery
Batteries: Lithium ion rechargeable (2 included)
The supplied battery pack: RRC Power Solutions Lithium Ion Rechargeable Battery pack Model #RRC2040, rated 11.25V, 2950mAh, 33.2Wh.

THERMAL

Operating temperature: -10 to 50°C
Battery charging temperature: 5 to 37°C
Storage temperature: -20 to 60°C
Note: extended storage at temperatures above 40°C could degrade battery & OLED display performance and life.
