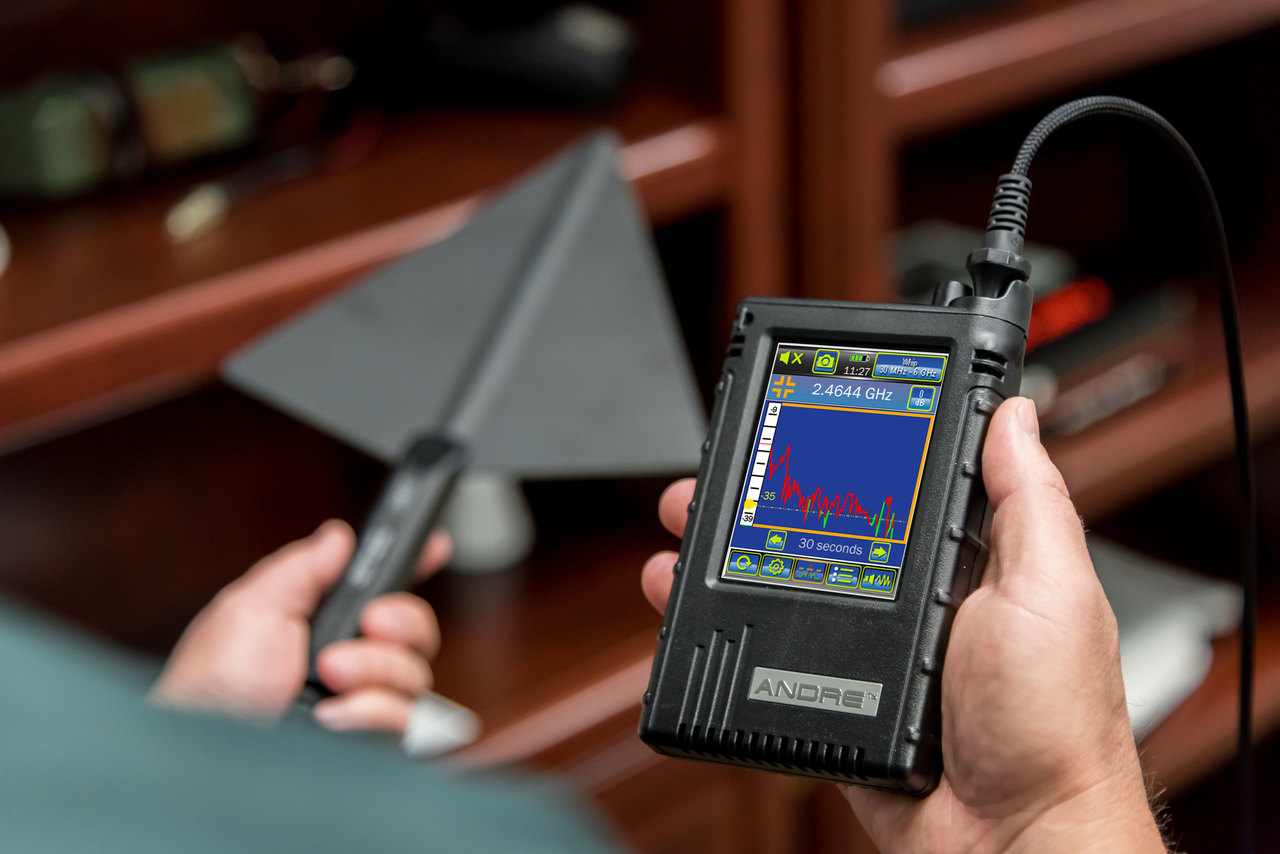

ANDRE™ Deluxe Near-field Detection Receiver
ANDRE™ Deluxe Near-field Detection Receiver
Includes an ANDRE, the whip antenna/probe (30MHz - 6GHz), the VLF loop probe (10kHz - 30MHz), and a carrier current probe (AC 100kHz - 60MHz), AND
the concealed antenna (750MHz - 6GHz), the sniffer/locator probe (20MHz - 6GHz), acoustic leakage probe, audio transformer (30Hz – 20kHz), AND
the active log periodic high frequency directional antenna (500MHz – 12GHz), active flag directional antenna (70MHz – 500MHz), ultrasonic probe, a boom pole and cables to extend probes for hard to reach areas (i.e. ceilings), and data logging functionality and data viewer software.
Detect Electronic Transmitters
- Efficiency: auto-recognition of attached probes displays the correlating frequency band
- Usability: 3.5” touch screen display provides simple setup and operation
- Portability: lightweight, handheld unit has a USB data port for file transfer
Features
- HISTOGRAM DISPLAY: The ANDRE features a signal strength histogram displaying RF levels over user-selected time intervals ranging from 5 seconds to 24 hours. Observe differences between digital, analog, and burst signals and set alert thresholds with audio and haptic feedback.
- ZOOM VIEW: In zoom mode, only a 30 dB segment of the histogram is displayed. This reduced scale enables users to easily see small changes in RF signal activity.
- SIGNAL INFORMATION AND BAND DETAILS: The ANDRE frequency counter automatically generates a signal list from the strongest signals. Signal frequencies are listed beginning with the strongest signal, and can be designated as threatening, friendly, or unknown. Double-tapping a signal provides more details including band classification information.
- AUDIO MODE: The ANDRE can demodulate and playback live analog audio. Ten second audio files can be recorded, stored, and played back. The live audio screen displays a bar graph showing received signal strength.
- DATA LOGGING (Deluxe feature): This new software feature provides histogram data for downloading to a PC and viewing on the ANDRE Data Viewer. Captured information includes time/date, signal amplitude, user settings, probes, chart duration and detailed frequency band information.
Applications
- Technical Surveillance Countermeasures (TSCM)
- Counter Surveillance
- Broadband Detection
- Near-field Transmission Detection
- Intelligence Protection
- Executive Protection
- Eavesdropping Detection
- Surveillance Equipment Detection
- Electronic Surveillance Detection
Specifications
RF DETECTOR |
Sensitivity:
Stepped attenuation control: -20 dB, -10 dB, off, +15 dB |
AUDIO |
Built-in speaker and external headphones with adjustable volume control Tone style options: rising pitch, steady tone, off |
DISPLAY |
3.5” (4 cm) capacitive touch screen Screen brightness: High, Medium, Low |
INPUT/OUTPUT |
USB data port for software upgrades and file transfer |
POWER |
Input: USB internal charger Run time: >5 hours (typical) Charge time: 1.5 hours per battery (typical, 80% charge), <3.5 hours per battery (typical, 95% charge) Batteries (4 included with Advanced and Deluxe): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh External USB charger included |
INPUT/OUTPUT |
USB data port for software upgrades and file transfer |
POWER |
Input: USB internal charger Run time: > 5 hours per battery (typical) Charge time: 1.5 hours per battery (typical, 80% charge), < 3.5 hours per battery (typical, 95% charge) Batteries (4 included): Nitecore 18650 Lithium Ion Rechargeable Battery Model #NL189, rated 3.7V, 3400mAh, 12.6Wh External USB charger included |
MECHANICAL |
Case dimensions: 6.25 in x 14.9 in x 18.5 in (15.9 cm x 37.8 cm x 47.0 cm) ANDRE dimensions: 3.4 in x 5.7 in x 1.0 in (8.7 cm x 14.4 cm x 2.5 cm) ANDRE weight with batteries: 0.65 lbs (0.3 kg) Case weight with ANDRE & all accessories: 12.7 lbs (5.8 kg) |
THERMAL |
Operating temperature: -10° C to 50° C Battery charging temperature: 0° C to 35° C Storage temperature: -20° C to 50° C Note: extended storage at temperatures above 40° C could degrade battery performance and life. |
