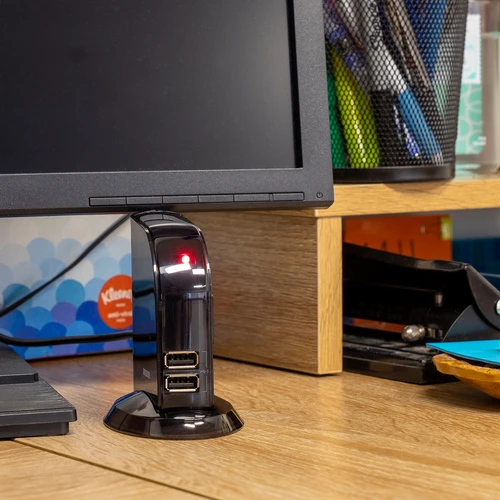

The USB Hub Hidden Camera combines a functional USB hub with a concealed Wi-Fi camera. Connect USB devices while monitoring a home office, workspace, or other indoor area through the LM Security app. Its compact design fits alongside everyday desktop equipment.

120° Wide-Angle Camera for Desktop Monitoring

The camera's fixed 120° viewing angle captures a broad area from a single position. Place the hub on a desk, shelf, or other stable surface, then check the live feed to confirm that the area you want to monitor is within view.

The hub retains its USB functionality, providing multiple ports for connecting devices while housing the camera.

4K Live Streaming and 3MP Video Recording

View live video at 4K or 1080p resolution through the LM Security app. Saved recordings use 3MP resolution (2304 x 1296) and MP4 format.

Streaming resolution and recording resolution are separate specifications. The camera streams at up to 4K but does not record 4K video.

Continuous or Motion Detection Recording

Choose continuous recording to document activity throughout the day, or select motion detection recording to reduce footage of an inactive scene. Motion notifications can alert you through the app when movement is detected.

The AC power supply supports extended operation without battery recharging. Recording requires a compatible microSD card and the required router connection.

Dual-Band Wi-Fi and Remote App Access

Connect the camera to a compatible 2.4 GHz or 5.8 GHz Wi-Fi network and pair it with the LM Security app. You can then view the live feed remotely, review recordings, and adjust camera settings.

The app supports Android 7 and later and iOS 14 and later. Live-view zoom lets you inspect areas within the camera image, and multicamera viewing supports up to 16 compatible devices in the app.

Removable microSD Storage with Loop Recording

The USB hub camera has an external microSD card slot supporting Class 10 cards up to 128GB. Storage is removable card-based memory, rather than built-in, non-removable storage.

A microSD card is required for local recording. Memory cards are not included and are sold separately.

The listed recording consumption is approximately 1GB per five hours of video. Actual file sizes and storage duration vary with recording conditions and settings.

Enable loop recording to overwrite the oldest files when the card is full. Save recordings you want to retain before they are replaced.

Time and Date Stamps for Recorded Events

Time and date stamps help you identify when activity occurred and organize footage for later review. Check the camera's clock settings during setup so recordings display the correct date and time.

Computer Viewing, FTP Access, and NVR Support

Enable ONVIF in the LM Security app to view the camera through compatible computer video management software or connect it to a compatible network video recorder.

You can also use FTP software over your local network to browse and manage recording files without removing the microSD card.

Optional Cloud Recording for Motion Events

A paid cloud recording subscription is available through the LM Security app. This service stores motion-triggered events for access through the app and is separate from local microSD recording.

Subscription payments are handled by the third-party cloud storage provider.

1 Year Warranty and Lifetime Technical Support

The USB Hub Hidden Camera includes a one-year warranty and lifetime technical support for assistance with setup and operation.

Features

• Functional USB Hub: Multiple USB ports allow you to connect devices while keeping the camera integrated into your desktop setup.
• 120° Viewing Angle: Provides wide-angle coverage from a fixed camera position.
• 4K Live Streaming: View the live feed at 4K or 1080p through the app.
• 3MP Recording: Saves video at 2304 x 1296 resolution in MP4 format.
• Recording Options: Choose continuous or motion detection recording.
• Motion Alerts: Receive app notifications when movement is detected.
• Loop Recording: Replaces the oldest files when the microSD card is full.
• Remote Access: View footage and adjust settings through LM Security.
• Time and Date Stamping: Helps identify and organize recorded events.
• Dual-Band Wi-Fi: Supports compatible 2.4 GHz and 5.8 GHz networks.
• Optional Cloud Recording: Paid motion-event cloud storage is available through the app.
• Live-View Zoom: Inspect areas within the live camera image.
• Computer Viewing: Supports compatible video management software through ONVIF.
• Multicamera Viewing: View up to 16 compatible devices in the LM Security app.
• Local FTP Access: Browse and manage recordings over your local network.
• NVR Compatibility: Connect to a compatible network video recorder with ONVIF enabled.
• Removable Storage: External microSD slot supports Class 10 cards up to 128GB. Cards are sold separately.
• AC Powered: Operates from the supplied power connection without battery recharging.
• Audio Setting: Audio with video can be enabled or disabled in the app.

USB Hub Camera Applications

• Home Office Monitoring: Monitor a desk, computer area, or nearby belongings from a familiar desktop accessory.
• Workplace Security: Document activity around equipment, workstations, and areas where unauthorized access or theft is a concern.
• Temporary Workspace Monitoring: Set up in a temporary location where suitable power and a compatible router connection are available.
• Caregiver Monitoring: Position the hub to observe activity within its fixed field of view.

Technical Specifications

• Model: LMUSBHub
• UPC: 659657299857
• Phone Application: LM Security
• App Compatibility: Android 7 and later; iOS 14 and later
• Wi-Fi Compatibility: Compatible 2.4 GHz and 5.8 GHz networks
• Streaming Resolution: 4K or 1080p
• Recording Resolution: 3MP, 2304 x 1296
• Recording Modes: Continuous or motion detection
• Recording Consumption: Approximately 1GB per five hours
• Video Format: MP4
• Viewing Angle: 120°
• Storage: External microSD card slot supporting Class 10 cards up to 128GB; card sold separately
• Dimensions: 3.5" x 2.3" x 3.5"
• Power Supply: AC power adapter with 5V / 4A / 20W output
• Input Voltage: 100–240V, 50/60Hz
• Plug Type: Type B
• Audio with Video: Can be enabled or disabled in the app

Package Includes

• 1 x USB Hub Hidden Camera
• 1 x Quick Start Guide
• 1 x Power Cable
• 1 x USB 2.0 Cable

MicroSD memory card sold separately.

Setup and Network Requirements

• The camera must be paired with a compatible router for live viewing, recording, and motion alerts.
• Insert a compatible microSD card for local video recording.
• Some networks restrict camera connections. Hotel networks, corporate networks, cellular hotspots, and public Wi-Fi may prevent setup or remote access.
• LED lighting can cause dark bands in the live feed or recordings because the camera may capture the lighting's rapid flicker.
• This product is built to order. Allow an additional 24 to 48 hours for processing.
